商品の詳細:
|
| 材料: | いいえ45#堅いChromeとのそして癒やされる | 色: | 青 |
|---|---|---|---|
| ローラーの場所: | 16のローラー | ||
| ハイライト: | upright roll forming machine,rack rolling machine |
||

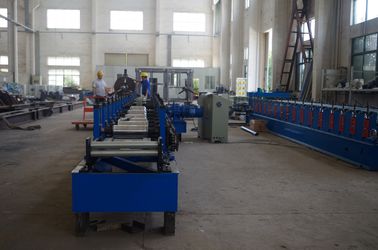

1. Description of Storage Rack Roll Forming Machine
LBM company is producing and offering outstanding quality range of door frame roll forming machines. These door frame roll forming machines can be customized as per customer requirement based. These door frame roll forming machines are mostly known for its stability and superiority. These door frame roll forming machines can be availed at best competitive prices.
LBM company is producing high quality door frame roll forming machines. Most of them are exported to Australia, Thailand, South Africa, Crotia, Sudan, Kuwait, Bangladesh, Turkey, Russia, etc.
2. Technical parameters of door frame roll forming machine
| No. | Item | Description |
| 1 | Suitable Plate Material | Thickness: 1.5-2.0mm, Galvanized steel or blank steel |
| 2 | Working Speed | 12-15 m/min |
| 3 | Roller quantity | 18 rollers |
| 4 | Material of Roller | Gcr15, Quench HRC58-62 Plated Chrome |
| 5 | Material of Shaft | 45# Advanced Steel (Dia: 76mm), thermal refining |
| 6 | Driven system | gear box drive |
| 7 | Main Power with reducer | 7.5KW |
| 8 | Cutting model: | Hydraulic Cutting Cr12mov |
| 9 | Material of Cutting blade | Cr12Mov, Quench HRC58-62 |
| 10 | Hydraulic Station Power | 7.5KW |
| 11 | Operation system | Controlled by industry computer-PLC system. |
| 12 | PLC brand | Siemens with Japan English and Chinese Language |
| 13 | Touch Screen | Siemens Japan |
| 14 | Encoder | Omron, Japan |
| 15 | Electric parts | Schneider |
3. Main components of door frame roll forming machine
| Manual Decoiler | Max Width: 1250mm |
| Inner Diameter: 500mm | |
| Outer Diameter: 1200mm | |
| Max Weight Capacity: 5T | |
| Roll Forming | Raw Material: Colored steel or galvanized steel |
| Material Thickness: 1.5-2mm | |
| Working Speed: 12-15m/min; Adjustable | |
| Rollers: 18 rollers ( based on drawing ) | |
| Material for Rollers: GCr15, polished, quenched HRC55-60 | |
| Motor Power: 15 Kw | |
| Roller Diameter: 76mm | |
| Transmission Type: Chain Transmission | |
| Appearance Size: About 4500mm*1200mm * 1500mm | |
| Total Weight: About 6T | |
| Hydraulic Cutting | Cutting Type: Hydraulic, automatic cutting |
| Blade Material: Cr12 with polished, quenched HRC 60-62 | |
| Power: 3KW | |

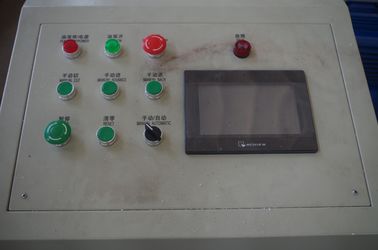

| Control System | Electrical Control: PLC Frequency Control System,touch screen |
| Voltage: 380V/50Hz/3Ph(or custom) | |
| Length Error: ±1mm | |
| Output Table | It is simple and used to load finished product |
| Length: 4m ( or custom) |
